Automatic Pneumatic Rubber Roller Paddy Sheller&Husker&Huller with Vibrating inputer

The husker is mainly used for husking rice, millet and other grains. Different capacities and types are available.

This series of Pneumatic Rice Hulling Machine is new designed automatic rice huller, without gear box, which makes to get more compact structure, and stable performance to removing the rice husk from paddy.With the digital technology, this HB10 Paddy husking machine has higher degree of automation, lower broken rice rate, higher rice husking rate, more reliable running.

It's ideal rice hulling machine for the modern large-scale rice milling plant.

Features:

1.Automatic detection, automatic open feed—in door and fold roller with material;

2. Rubber roller abrasion automatic compensation into the roller in processing;

3. Automatic detection, automatic close feed-in door and apart roller without material;

4. Continuously regulate the pressure of roll-engagement, suitable for different areas of raw grain processing;

5. Perfect motor overload automatic protection function, equipment operation more reliable.

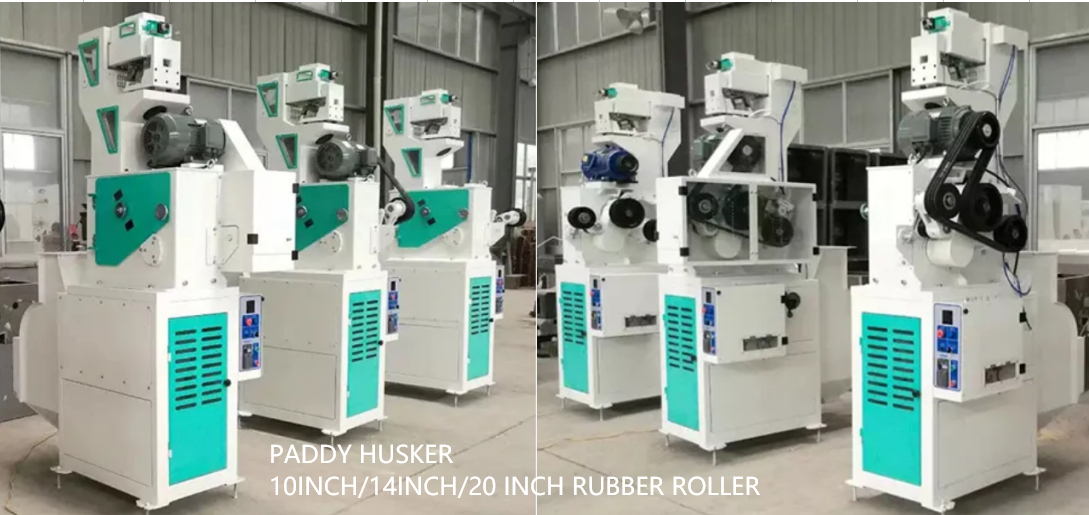

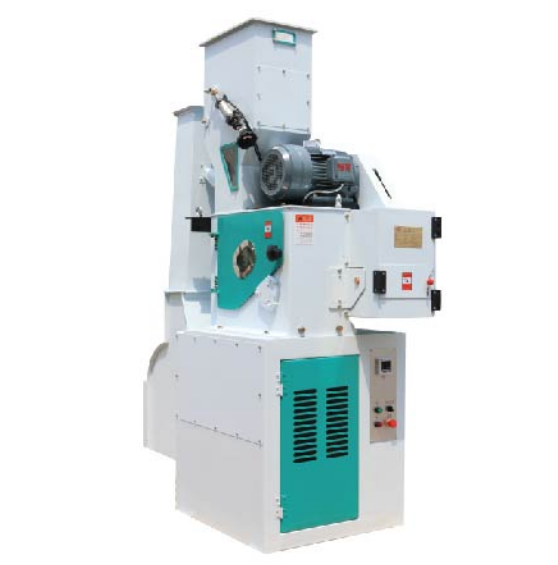

HB Pnuematic rubber roller husker

(without gear-box)

It achieves the purpose of shelling by squeezing and rubbing the paddy with the help of a pair of rubber rollers that rotate at different speeds. This husker adjusts the pressure of the tight rollers by air pressure, the cylinder controls the rubber rollers, automatically detects, automatically closes the rollers when there is material, and automatically loosens the rollers in time when there is no material. The motor directly drives the rubber roller through the hexagonal belt, replacing the traditional process of the gearbox.

HB Husker Features

1. High hulling rate, low rate of crack: The machine adopts reasonable line speed difference and adjustable roller pressure, the hulling rate reached 90%, the breakdown rate is less than 5%, and remained stable in the production process.

2. Smooth running: The main rotating parts are strictly tested, and have a stable operation, and small vibration force.

3. Low roll consumption: Good ventilation and heat dissipation device, avoid overheating roller.

4. Husk separation effect is good, After the shelling, of raw materials through the aspirator, the grain mixture is completely separated from the bran.

5. With double supporting construction, rubble roll is not apt to form a difference in roll end diameters, with steady performance.
